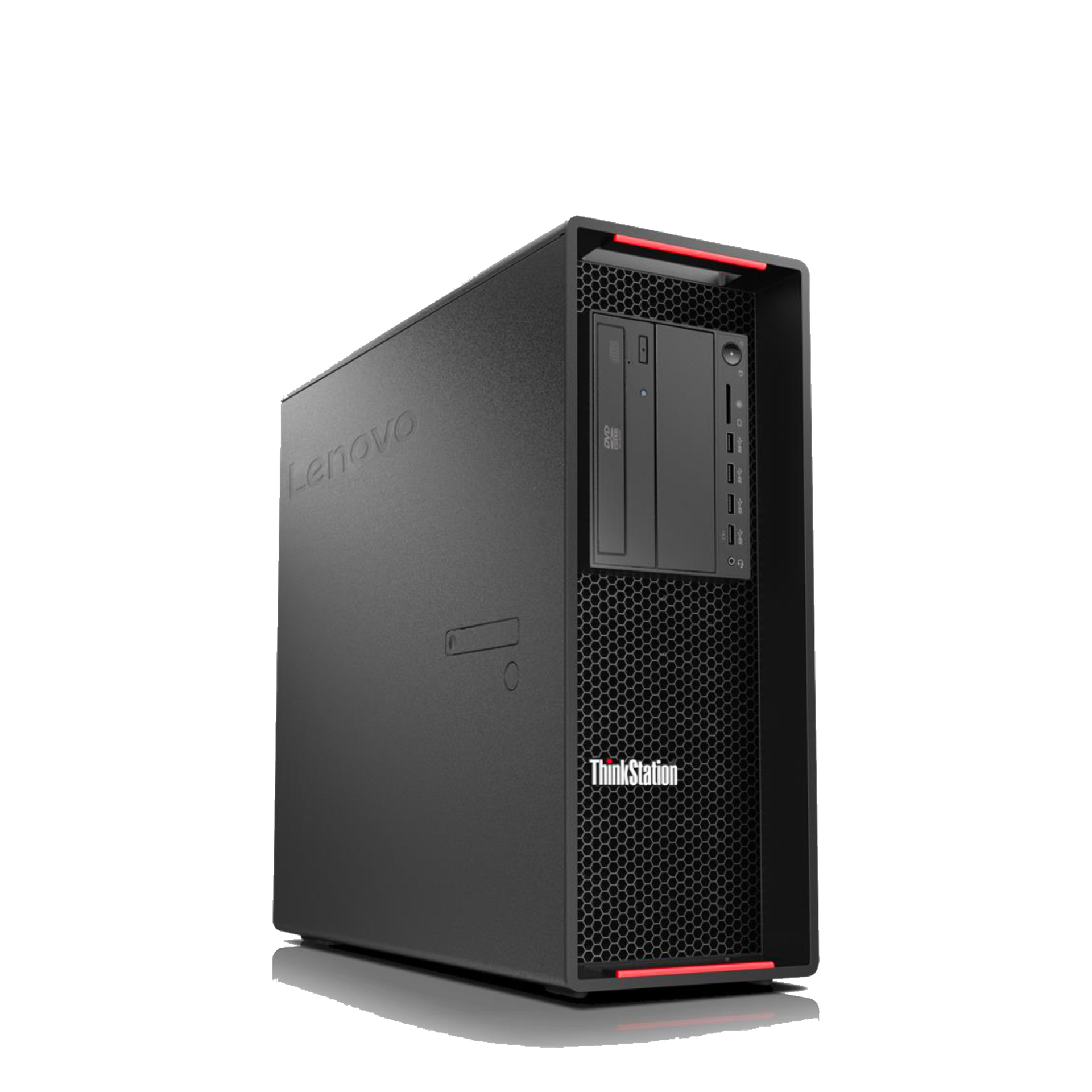

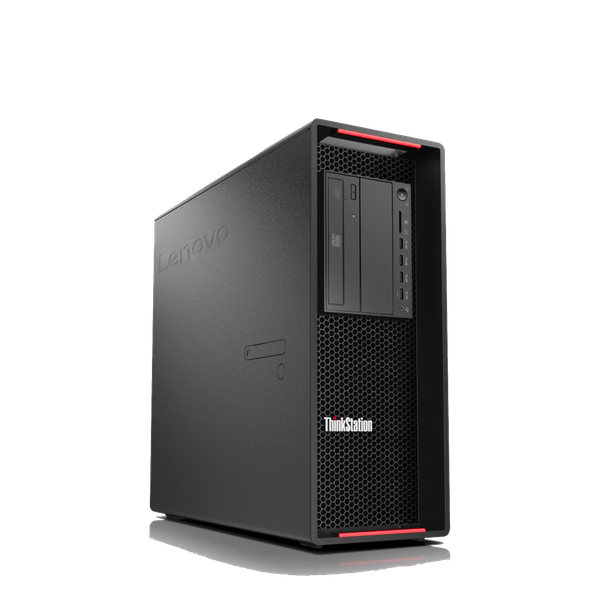

Máy trạm Lenovo ThinkStation P720 Dual CPU Workstation

tower

44.6 x 48.5 x 17.5 cm

Tối đa: 25.7 kg

Intel C621

FCLGA3647 (Socket P)<br />CPU 1 & CPU 2 socket trên mainboard

Single Intel Xeon W socket 3647<br />Single / Dual Xeon Scalable

24 nhân (tối đa 48 nhân CPU / dual socket)

165W

Có

tổng cộng 12 khe RAM trên mainboard

384GB: 32GB bus 2666 x 12 (Xeon Scalable gen 1)<br />768GB: 64GB bus 2933 x 12 (Xeon Scalable gen 2)

REG ECC DIMM

8GB, 16GB, 32GB, 64GB

2133 MT/s (Xeon Bronze gen 1)<br />2400 MT/s (Xeon Silver, Xeon Gold 51xx và 52xx)<br />2666 MT/s (Xeon Gold 61xx, Xeon Gold 52xx)<br />2933 MT/s (Xeon Gold 62xx)

Windows 11 Pro for Workstations<br />Windows 10 Pro for Workstations

2 x Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support<br />I210-AT<br />Wake-on-LAN

2

1Gbps

Intel® Ethernet I219-LM<br />Intel® Ethernet I210-AT

Không có (mặc định)

PCI Express Gen3 x16 - CPU2

PCI Express Gen3 x16 - CPU1

PCI Express Gen3 x8 - CPU1

PCI Express Gen3 x16 – CPU1

PCI

PCI Express Gen3 x4 (half length) - PCH với open-ended connector

2

M.2 PCIe Gen 3 x4 - size 2280

M.2 PCIe Gen 3 x4 - size 2280

6 SATA @6Gb/s, hỗ trợ RAID 0, 1, 5, & 1000

Cần thêm PCIe card tùy chọn

SATA RAID 0 Striped Array<br />SATA RAID 1 Mirrored Array<br />SATA RAID 10 Striped/Mirrored

4 cổng USB 3.1 gen 1

2 cổng USB 2.0 <br />4 cổng USB 3.1 Gen 1

_

Audio in/out<br />Keyboard mouse PS/2<br />Serial

1000 watt, 92% Efficient<br />80 Plus Platinum<br />Cáp nguồn 2 X 6-pin cho GPU

Có

Realtek ALC662<br />High Definition (HD) Audio codec
